Products Show >> Oxygen Compressors >> ZW-4.17/165 NO WATER LUBRICATION OXYGEN COMPRESSOR
Type: Oxygen Compressors

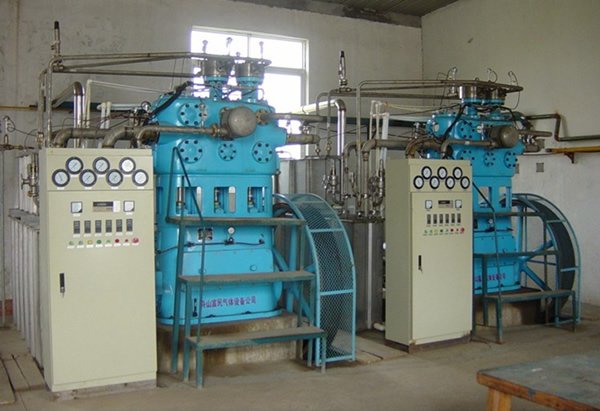

Product Name: ZW-4.17/165 NO WATER LUBRICATION OXYGEN COMPRESSOR
Product Description:
Type:                                         Vertical, three-rank, five-stage, oil-free lubrication, water-cooling and piston
Exhaust capacity:                        250 m3/h (according to suction state)
Medium :                                    Dry oxygen
Inlet Temperature:                      <40℃
Max Working Pressure:                16.5 MPa(165kgf/cm2)
Piston travel:                              180 mm
Consumption of cooling water:     6T/hr
Revolution of compressor:           252r.p.m
Revolution of electric motor:        960 r.p.m
Power of electric motor:              75KW
Matching motor:                         380V (three phase)    50Hz
